S-LOK Instrument Thread & Weld Fittings

Technical Data

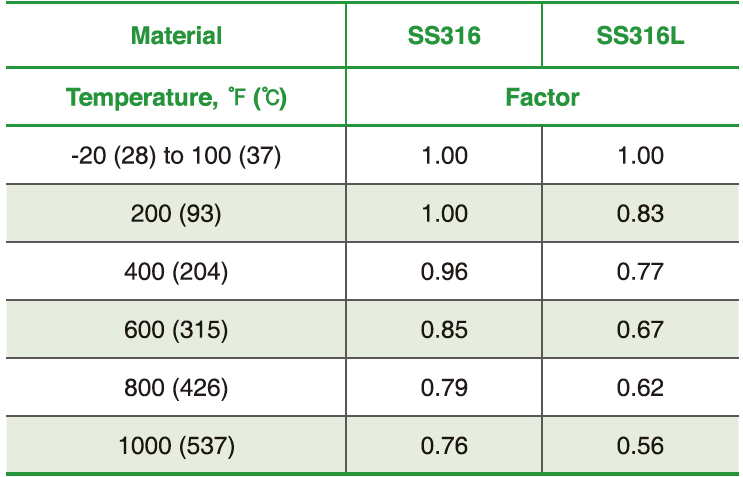

Pressure Ratings

• All instrument thread fittings are designed in accordance with ASME B31.3 for instrument and process.
• Male thread are protected with cap.
• Burr-free internal and outside surfaces.
• Burr-free internal and outside surfaces.

Cleaning & Packaging

• Passivation in a nitric environment.
• Ultra-sonic cleaning with minimum 18M of D.I water after passivation.
• All fittings are double packaged in the clean room.
• Sealing parts are protected with a plastic cap.

**Micro Weld Fittings / Tube Butt Weld Fittings / Metal Face Seal Fittings
