S-LOK UHP Fittings (Clean Fittings)

Technical Data

Pressure Ratings

• Pressure ratings are based on allowable stress value of 20,000psi as specified in ASME B31.3 for 316 stainless steel.
• Pressure ratings of Metal Face Seal Fittings determined at room temperature with gasket materials shown.
• For pressure ratings of ASME B31.1, multiply working pressure by 0.94.

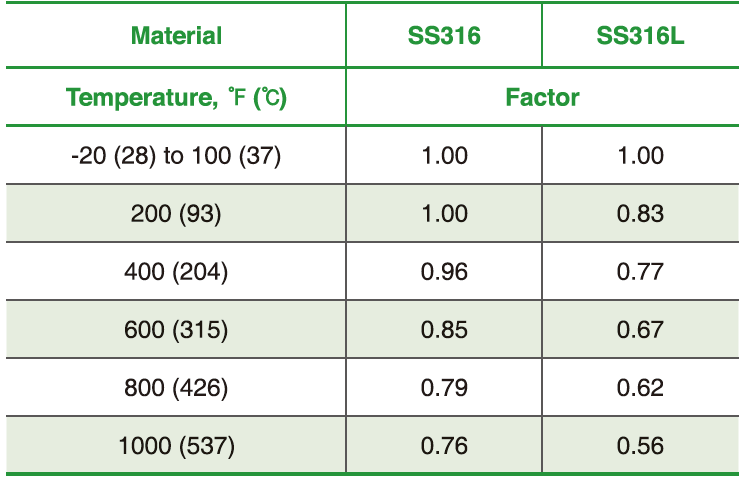

• Allowable working pressure at temperatures greater than 100°C (37°C) may be determined by multiple factors in the table below.

Cleaning & Packaging

• Passivation in a nitric environment.
• Ultra-sonic cleaning with minimum 18M of D.I water after passivation.
• All fittings are double packaged in the clean room.
• Sealing parts are protected with a plastic cap.

**Micro Weld Fittings / Tube Butt Weld Fittings / Metal Face Seal Fittings
