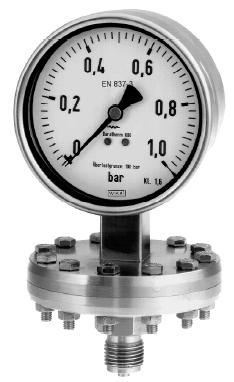

WIKA Diaphragm pressure gauge Stainless steel version
Model 432.56, high overpressure safety up to 100 bar
Model 432.36, safety version, high overpressure safety up to 400 bar

DESCRIPTION:

• Model 432.56 => High Overpressure Safety up to 40 or 100 bar
• Model 432.36 => High Overpressure Safety up to 400 bar
• Where low system pressure to be measured alternates with high pressure cycles.All stainless steel pressure gauge.
• Suitable for corrosive environments and gaseous and liquid media. With optional flange connection also for viscous and contaminated media.
• EN 837-3, a choice of overpressure safety is available up to 40, 100 or 400 bar, metallic diaphragm cushion provides for overpressure safety, without diaphragm hydraulically cushioned.
• IP 54 per EN 60 529 / IEC 529
• Natural finish stainless steel case with pressure vent in case back (model 432.36 see overleaf)
• Cam Ring (bayonet type), natural finish stainless steel
• Upper diaphragm housing : Chrome steel
